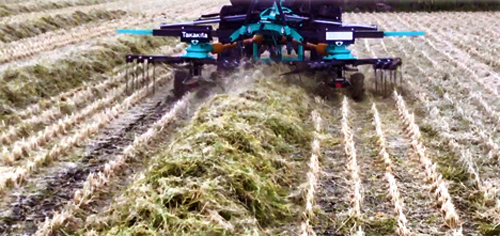

Easy collection from all corners of the field!
Three rows of tines on each arm
Reduce collection loss!
Adjustable working width
Working width can be adjustable depending on the working width and amount of grass.
TR3880 : 325cm, 340cm, 350cm, 365cm, 380cm
TR4580 : 390cm, 400cm, 420cm, 430cm, 455cm
TR5580 : 510cm, 530cm, 550cm
Free Swing Mechanism
Easy to follow on uneven surfaces of the field and when turning, it is also easy to work around corners.
When lifted, it automatically returns to the center, allowing smooth operation of the next line.

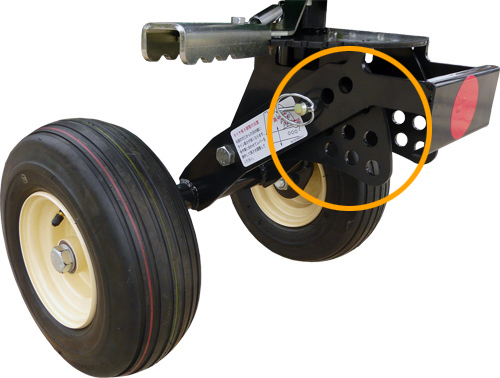

Adjustable working height
By replacing the pin position, the working height can be adjusted to each levels according to field conditions.
TR3380 & TR4580 : 11 levels, TR5580 : 18 levels

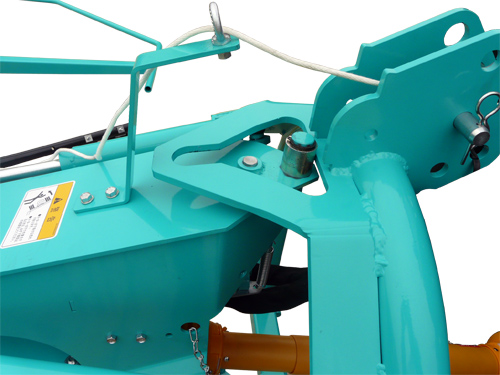

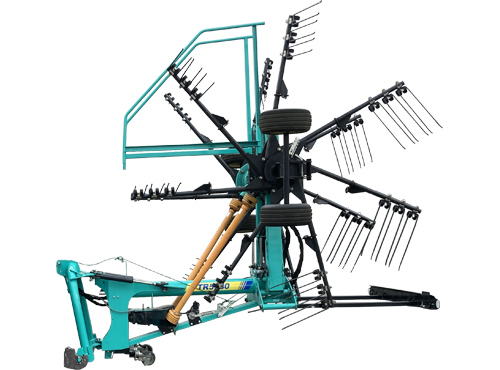

Compactness when moving and storage
Hydraulic system to compact the arms when moving and storage.
The automatic lock prevents shaking during transportation.
Product dimensions
Full width when storage : TR3880(2,130mm)・TR4580(2,320mm)・TR5580(2,490mm)
Compatible with public road driving
Equipped with lighting equipment as standard.
* For Japanese regulation

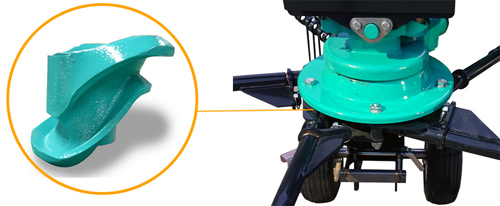

3D cam improved collection performance
3D cam can accurate control of tine.
It reduces vibration and noise and improves collection performance with smooth movement.
By operating the cam lever, easily switch between collection, simple diffusion and simple reversal.

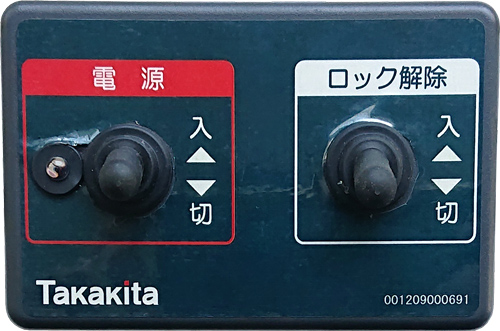

Option: Electric rock release attachment (Sold separately)
Control box operation allows arm opening/closing to be unlocked.
※Specifications and photos are subject to change without notice for improvement.
